Our expertise in surgical lighting
At Surgiris, we design innovativesurgical lighting solutions to meet the demands of modern operating rooms. With over 25 years of expertise in biomedical engineering, our R&D teams develop surgical lights, patented technologies, and exclusive innovations in-house.
Our surgical lights, such as the EPURE XMT series, feature advanced capabilities designed to enhance visibility, precision, and safety during surgical procedures.
Patented technologies for surgical lighting
Drawing on our expertise in surgical lighting, we have developed several proprietary technologies designed to optimize the performance of surgical lights in the operating room.

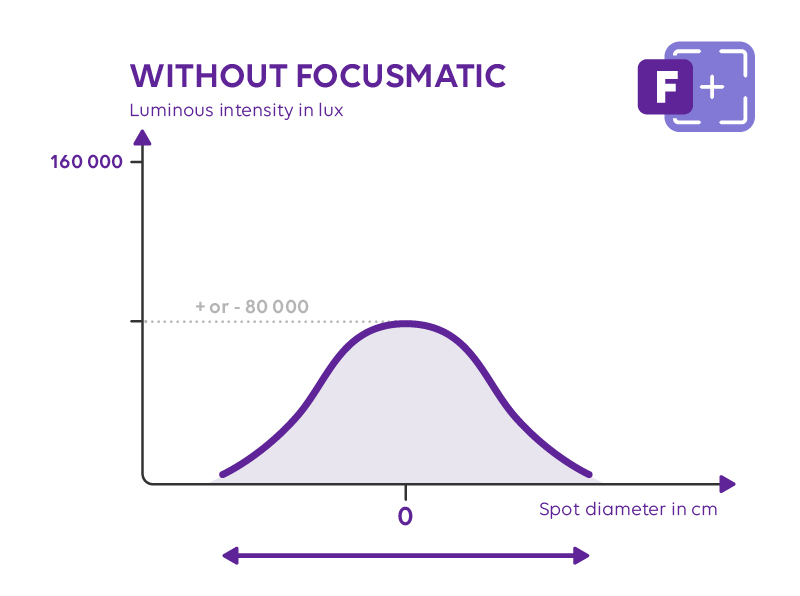

FOCUSMATIC: Focusing without loss of intensity
FOCUSMATIC technology allows you to adjust the diameter of the light beam without losing intensity at the center.
Benefits
- Maximum light output, even at wide angles
- Precise electronic focusing

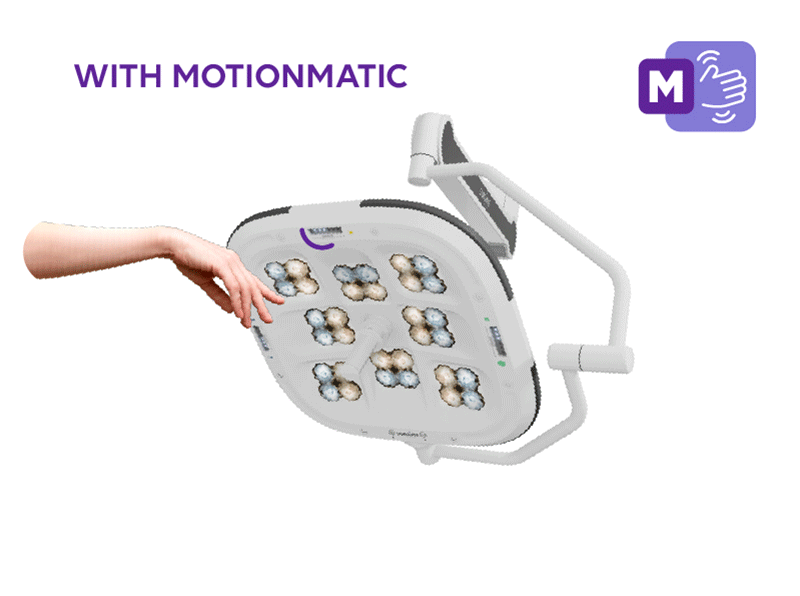

MOTION MATIC: Contactless adjustment in a sterile environment
MOTION-MATIC technology allows you to adjust the light intensity and lamp settings hands-free, simply with a wave of your hand.
Benefits
- Maintaining a sterile field
- Quick and intuitive settings

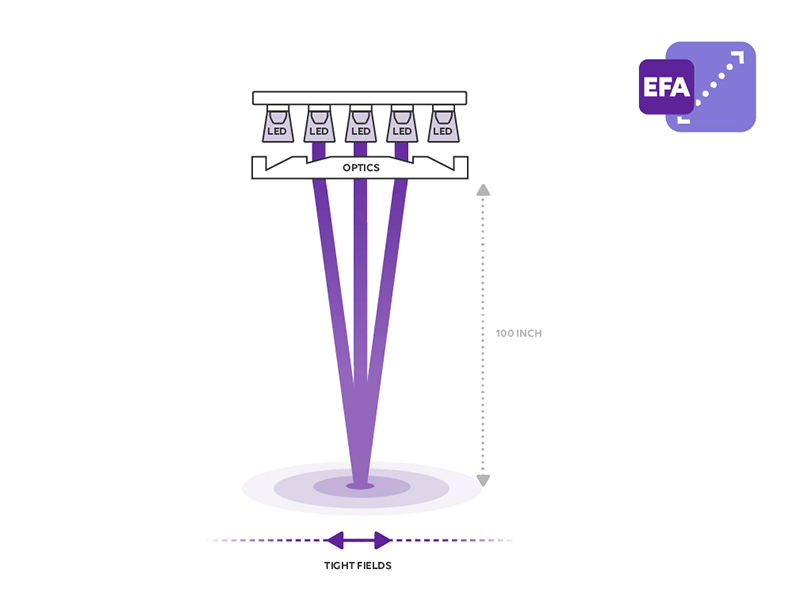

EFA: Electronic Field Adjustment
The EFA (Electronic Focus Adjustment) algorithm allows you to adjust the field of view without any mechanical movement.
Benefits
- Fewer breakdowns
- Simplified maintenance

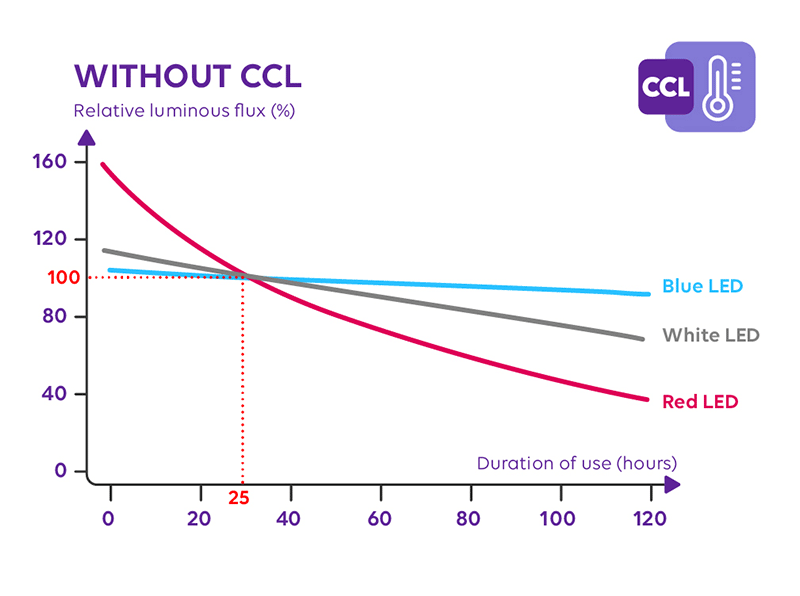

CCL: Consistent color reproduction
CCL (Constant Color Lighting Level) technology ensures accurate color reproduction throughout the entire procedure.
Benefits
- Optimal visibility of the fabrics
- Visual comfort for the surgeon

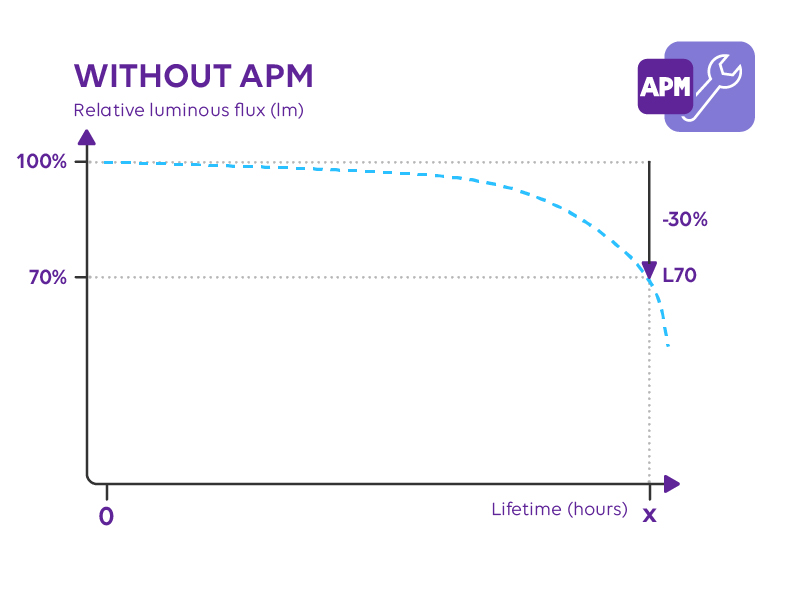

APM: Sustained Performance Over Time
APM (Automatic Preventive Maintenance) technology ensures consistent performance throughout the entire lifespan of the surgical lights.
Benefits
- Sustainability
- Long-term reliability

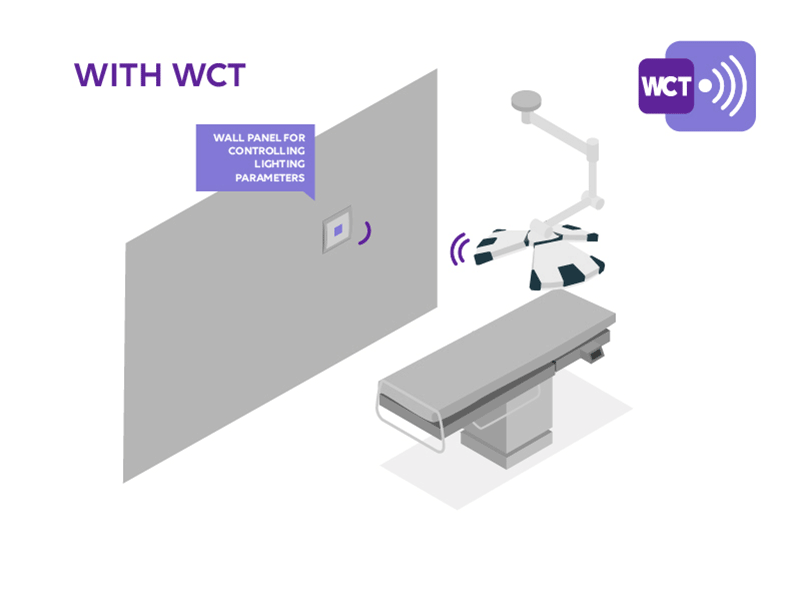

WCT: Wireless Control and Integration
WCT (Wireless Communication Technology) enables wireless control of surgical lights and related equipment.
Benefits
- Simplified installation
- Easier integration in the operating room
Innovations to Improve the Operating Environment
Shadow elimination
By overlapping light beams, surgical lights reduce shadows in the surgical field.
Laminar flow
The innovative design of Surgiris surgical lights is engineered to cause only minimal disruption (28–29%) to laminar airflow, in accordance with DIN 1946-4.
Key features of our surgical lights
COLOR TEMPERATURE
Our surgical lights offer variable color temperature. You can vary the temperature between 3,500 K and 5,000 K (depending on the model) to suit your cardiac, orthopedic, vascular, and other types of surgery.
PROTECTION RATING
The protection index classifies and evaluates the degree of protection (dust intrusion, accidental contact, and water) provided by mechanical and electrical enclosures. Our operating lights guarantee IP54 protection.

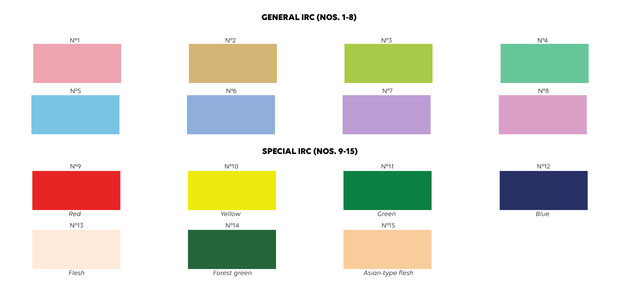

COLOR RENDERING
Surgiris surgical lights offer excellent color rendering, with Ra and R9 values of up to 99 (depending on the model)! The R9 value represents the color red, which is very important in surgery for visualizing blood vessels.
Why choose Surgiris for your surgical lighting?
Surgiris helps healthcare facilities optimize their operating rooms with reliable and innovative solutions.
- Expertise in biomedical engineering
- Patented technologies
- Solutions tailored to hospital environments
- Technical support and assistance
Download the documentation
Need more information?
We are here to help!
Frequently Asked Questions
Innovative embedded technologies
Surgiris surgical lights incorporate innovative embedded technologies designed to meet the demands of modern operating rooms. Each light is equipped with advanced features that allow precise control of intensity, focus, and color rendering, ensuring optimal visibility for the surgeon throughout the procedure.
Focusmatic technology allows the diameter of the light field to be adjusted electronically without any loss of intensity in the center, while EFA offers field variation without moving parts, reducing the risk of failure and maintenance. CCL systems guarantee consistent color rendering, even during long procedures, and the lamps have an excellent color rendering index (Ra and R9) for accurate distinction of tissues and anatomical structures.
MOTION MATIC and WCT technologies facilitate contactless and wireless control of the lights, allowing for intuitive and quick adjustments in sterile areas, while simplifying installation and integration with other surgical devices. The color temperature variation adapts to the specific needs of each specialty, and the high protection rating (IP) ensures safety and reliability in sterile environments.
Finally, the APM (Automatic Preventive Maintenance) function maintains light output throughout the lamp's lifetime, ensuring reliability and visual comfort. All these innovations enable surgical teams to work in optimal conditions, with precise, uniform, and reliable lighting, while facilitating traceability and safety during procedures.
Combining ergonomics, advanced technologies, and reliability, Surgiris surgical lights offer a comprehensive solution for improving clinical performance and optimizing operating room efficiency.
